Outdoor P16 Full Color Mobile VMS Signs Advertising Video Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Cabinet Material: | 2mm Aluminum Alloy | Color Coordinates: | C2:EN12966 |
|---|---|---|---|
| Lifespan: | >100000 Hrs | Operating Humidity: | 10%~90% |
| Store Humidity: | 15%~95% | ||
| High Light: | Full Color Mobile VMS Signs,P16 Mobile VMS Signs,P16 LED Truck Display |
||
Product Description
Outdoor P16 Full Color Mobile VMS Signs Advertising Video Screen
Outdoor Mobile Trailer P16 Full Color LED Screen Billboard Trailer Mobile Truck Advertising Video Screen LED Display Tra
Product Description

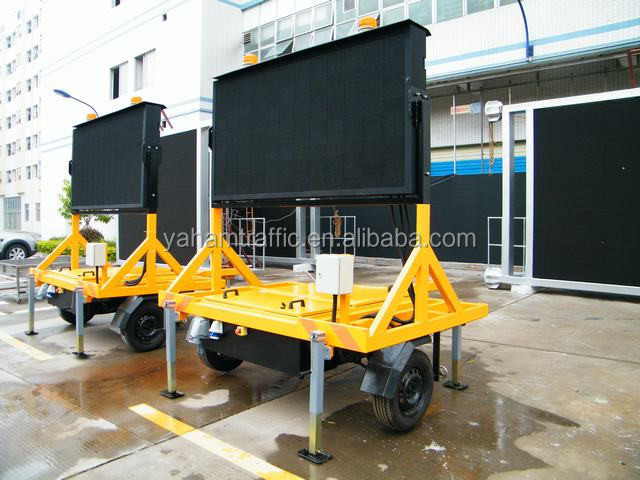

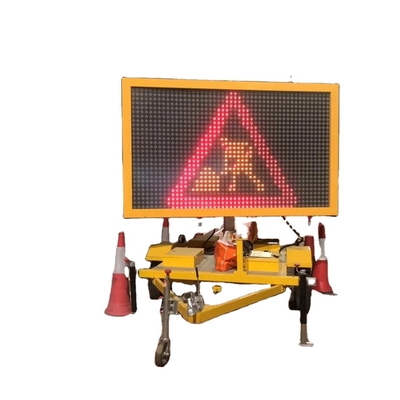

EN12966 OUTDOOR TRAFFIC LED TRAILER
YAHAM Variable Message Sign with photometric device for mounting on vehicles Display all usual traffic signs , symbols texts and dynamic High daytime visibility of all signs, text and symbols by patented anti-glare plate, no phantom light High-grade steel frame with motor-driven lifting and lowering device Viewing window protected when the sign is lowered Display of texts also possible in a flashing mode or alternating with symbols Also available with integrated yellow or blue LED advance warning lamps.
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
