Outdoor EN12966 Trailer Mounted VMS Solar Powered Stop Traffic Sign
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| LED Type: | 3 In 1 SMD + Lens | Brightness Adjustment: | 32/256 |
|---|---|---|---|
| Display Control: | Asynchronous Contral System Available | Feature: | Control System |
| AVE.POWER CONSUMPTION: | 80W | ||
| High Light: | EN12966 Trailer Mounted VMS,80W Portable Changeable Message Boards,EN12966 Stop Traffic Sign |
||
Product Description

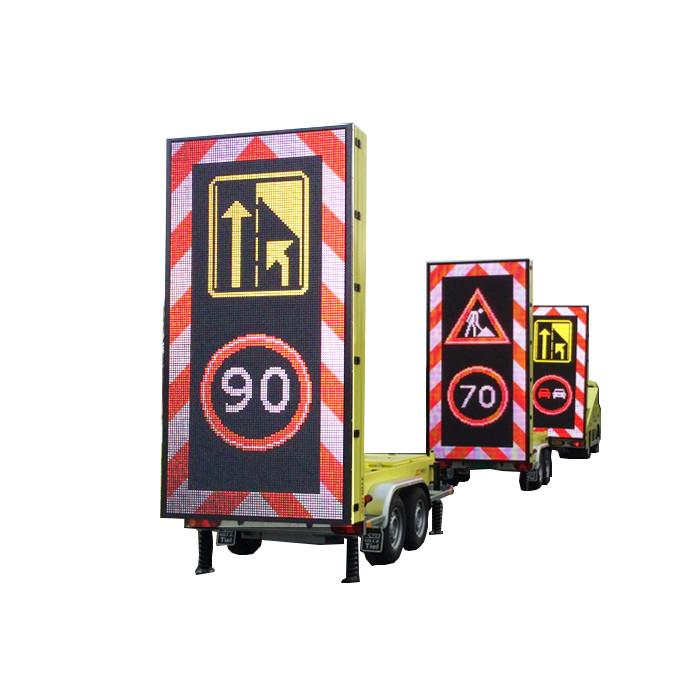

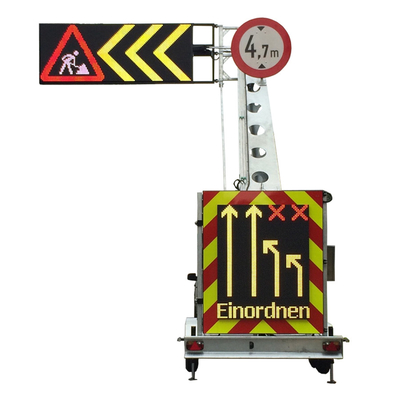

Outdoor EN12966 Trailer Mounted VMS Solar Powered Stop Traffic Sign
Outdoor Led Trailer Screen EN12966 Traffic Vms Trailer Solar Powered STOP Traffic Sign Wifi Control Traffic Road Emergen
Product Description
EN12966 OUTDOOR TRAFFIC LED TRAILER
Traditional truck LED display on the current market generally uses common anode technology, which provides 5voltage.But according to scientific study, Led-Red channel only needs 2.8voltage.And Led-Blue, Green both only need 3.8voltage. YAHAM uses another totally different solution using common cathode technology, which can ruduce the power consumption as much as possible.Compared to traditional truck LED display, ours can save 20-30% of power.
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
Application scenario
