Mobile 3 In 1 SMD Lens VMS Trailer Signs LED Display With Generator
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1500-2000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Pixel Pitch: | 6mm,10mm,12mm,16mm,20mm,25mm,31.25mm | Cabinet Material: | 2mm Aluminum Alloy |
|---|---|---|---|
| Brightness Adjustment: | 32/256 | Display Control: | Asynchronous Contral System Available |
| High Light: | SMD Lens VMS Trailer Signs,P6 VMS Trailer Signs,31.25mm Trailer LED Display |
||
Product Description
Mobile 3 In 1 SMD Lens VMS Trailer Signs LED Display With Generator
Led Screen Display P6 P10 Mobile Digital Trailer Led Display Plug And Play With Generator Advertising Led Display
Product Description

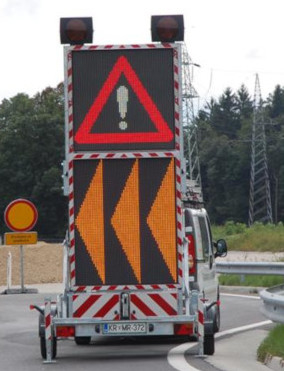

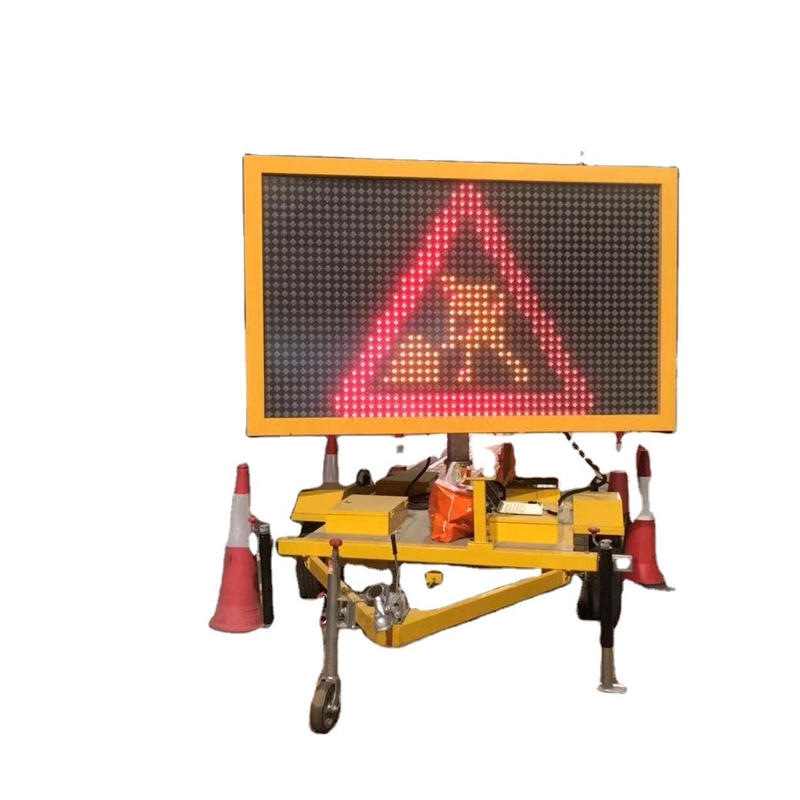

EN12966 OUTDOOR TRAFFIC LED TRAILER P31.25 FOR TRAFFIC SAFETY MESSAGE AND WARNING.
YAHAM mobile trailer led display Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360°no blind Angle,further enhance communication effect, and is especially suitable for city,assembly,crowded occasion applications such as outdoor sports field.The technology applied successfully for the first time in the domestic car LED media industry.
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1 SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
Application scenario
Want to Know more details about this product
